Element Symbol

Properties and Overview of Aluminium

Overview:

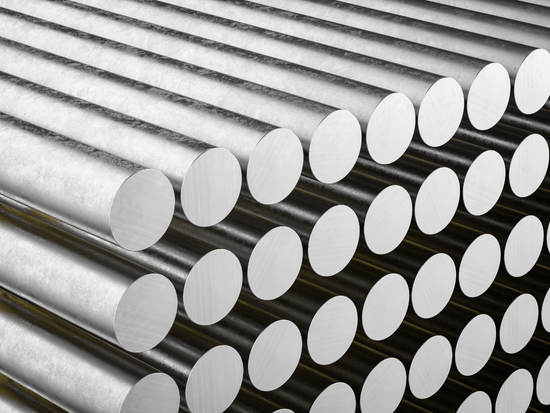

Image of Aluminium or Application Aluminium (Al) is a lightweight, silvery-white metal known for its versatility and abundance. It is symbolized by "Al" and has an atomic number of 13 on the periodic table. It is the third most common element in the Earth's crust, making up about 8% of its solid surface. Its widespread use in various industries is attributed to its unique combination of properties. Aluminium density is roughly one-third that of steel. This low density makes it an excellent material for applications where weight reduction is critical. Aluminium is also non-magnetic and non-sparking, essential in specialized industrial applications. It has a relatively low melting point vs other metals, allowing for easy casting and recycling.
Chemically, Aluminium is highly reactive but forms a protective oxide layer on its surface when exposed to air. This oxide layer prevents further corrosion, giving Aluminium excellent resistance to weathering and many chemicals. It does not rust like iron or steel. Aluminium is also amphoteric, meaning it can react with both acids and bases.
While Aluminium is generally safe to handle, there are specific safety considerations to consider. During production, handling bauxite and the chemical processes involved can produce hazardous dust and emissions if inhaled. It's crucial to use proper personal protective equipment (PPE) and follow safety protocols to mitigate these risks. Additionally, the Hall-Héroult process generates carbon dioxide and other greenhouse gases. Recycling Aluminium is much less energy-intensive and reduces the need for new raw materials, making it an environmentally safer option. In the workplace, Aluminium dust can pose an explosion hazard when dispersed in the air in sufficient concentrations. Proper ventilation, dust collection systems, and safety protocols are essential to mitigate this risk.


Production:

Aluminium is primarily extracted from bauxite ore through the Bayer process, which involves refining bauxite to obtain alumina (Aluminium oxide). The alumina is then subjected to electrolysis in the Hall-Héroult process. In this process, the alumina is dissolved in molten cryolite, a rare mineral, and then subjected to a high-voltage electrical current. This current breaks the chemical bonds, reducing the alumina to pure Aluminium metal. This energy-intensive process requires significant amounts of electricity, so Aluminium production is often located in regions with abundant and cheap electricity.


Applications:

Aluminium's combination of light weight, strength, and corrosion resistance makes it a key material in many industries. It is widely used in the aerospace industry for aircraft frames and components, where reducing weight is crucial. In the automotive industry, Aluminium is increasingly used in vehicle bodies and engine components to improve fuel efficiency.
Construction is another primary sector where Aluminium is employed, especially in window frames, roofing, and exterior cladding. Its non-corrosive nature makes it ideal for buildings in harsh environments. Aluminium is also commonly used in packaging (such as cans and foils), electrical transmission lines due to its excellent conductivity, and in consumer electronics, where lightweight and durability are valued.


Summary:

Aluminium is a metal of significant industrial importance due to its unique properties. Its lightweight, corrosion resistance and recyclability make it a preferred choice across various applications. The role of Aluminium in modern society is profound and cannot be overstated. Its benefits in reducing energy consumption and improving product performance make it an indispensable material. While its production requires careful consideration of environmental and safety factors, the value it brings to the industry and society at large is undeniable. By understanding and appreciating the significance of Aluminium, we can make informed decisions and contribute to its responsible use and management.



See a comprehensive list of atomic, electrical, mechanical, physical and thermal properties for aluminium below:



Atomic Structure of Aluminium

Image of Aluminium Structure

Unfamiliar with a property? Click it's description to be given a full definition in the GLOSSARY

See properties and overview for
ALLOYS and POLYMERS
popular in engineering

Require different units not displayed?
CONVERT VARIOUS UNITS HERE

Atomic Properties of Aluminium

Atomic Property (Units) Value
Aluminium Atomic Electron Configuration [Ne] 3s23p1
Aluminium Atomic Mass (amu) 26.982
Aluminium Atomic Number 13
Aluminium Chemical Element Symbol Al
Aluminium Covalent Radius (Å) 1.21
Aluminium Crystal Structure Face-Centered Cubic (FCC)
Aluminium Electronegativity (Pauling Scale) 1.61
Aluminium Electrons per Orbital Shell (inner most first) 2, 8, 3
Aluminium Half-Life (Years) N/A - Stable
Aluminium Lattice Parameter / Lattice Constant (Å) a = 4.05
Aluminium Number of Electron Orbital Shells 3
Aluminium Number of Electrons 13
Aluminium Number of Neutrons 13
Aluminium Number of Protons 13
Aluminium Periodic Table Series Post Transition Metals
Aluminium Phase at 'Standard Temperature and Pressure' Solid
Aluminium Stable Isotopes Al-27

Unfamiliar with a property? Click it's description to be given a full definition in the GLOSSARY

See properties and overview for
ALLOYS and POLYMERS
popular in engineering

Require different units not displayed?
CONVERT VARIOUS UNITS HERE

Electrical Properties of Aluminium

Electrical Property (Units) Value
Aluminium Dielectric Constant at 'Standard Temperature and Pressure' Unknown
Aluminium Electrical Breakdown Voltage at Atmospheric Pressure (kV/mm) Unknown
Aluminium Electrical Conductivity (S/m) 3.5E+07
Aluminium Electrical Resistivity at Room Temperature (25°C) (Ω·m) 2.857E-08
Aluminium Magnetic Property Paramagnetic
Aluminium Superconducting Transition Temperature (K) 1.2
Aluminium Temperature Coefficient of Resistance (°C⁻¹) 0.0039 (3900 ppm/°C)

Unfamiliar with a property? Click it's description to be given a full definition in the GLOSSARY

See properties and overview for
ALLOYS and POLYMERS
popular in engineering

Require different units not displayed?
CONVERT VARIOUS UNITS HERE

Mechanical Properties of Aluminium

Mechanical Property (Units) Value
Aluminium Compressive Strength (MPa) 140 - 200
Aluminium Ductile to Brittle Transition Temperature (°C) None (Ductile Always)
Aluminium Fatigue Limit (MPa) 55
Aluminium Fracture Toughness (MPa·√m) 20 - 35
Aluminium Hardness Brinell 15 - 25
Aluminium Hardness Rockwell 15 - 30 HRB
Aluminium Hardness Vickers 15 - 30
Aluminium Heat Deflection Temperature (°C) N/A - Not a Polymer
Aluminium Modulus of Elasticity / Young's Modulus (GPa) 69 - 70
Aluminium Percent Elongation (%) 35 - 45
Aluminium Poissons Ratio 0.33
Aluminium Shear Modulus (GPa) 25.5
Aluminium Shear Strength (MPa) 110 - 207
Aluminium Ultimate Tensile Strength (MPa) 90 - 400
Aluminium Yield Strength (MPa) 7 - 11

Unfamiliar with a property? Click it's description to be given a full definition in the GLOSSARY

See properties and overview for
ALLOYS and POLYMERS
popular in engineering

Require different units not displayed?
CONVERT VARIOUS UNITS HERE

Physical Properties of Aluminium

Physical Property (Units) Value
Aluminium Boiling Point at Atmospheric Pressure (°C) 2519
Aluminium Chemical Composition (Element %) Al
Aluminium Cost ($/kg) 1.75
Aluminium Density at 'Standard Temperature and Pressure' (kg/m3) 2700
Aluminium Glass Transition Temperature at Atmospheric Pressure (°C) N/A
Aluminium Melting Point at Atmospheric Pressure (°C) 660.32
Aluminium Polymer Family N/A - Not a Polymer
Aluminium Refractive Index Unknown
Aluminium Specific Gravity 2.7
Aluminium Viscosity at Melting Point (mPa·s) 1.29

Unfamiliar with a property? Click it's description to be given a full definition in the GLOSSARY

See properties and overview for
ALLOYS and POLYMERS
popular in engineering

Require different units not displayed?
CONVERT VARIOUS UNITS HERE

Thermal Properties of Aluminium

Thermal Property (Units) Value
Aluminium Coefficient of Thermal Expansion (µm/m·K) 23.1
Aluminium Emissivity Coefficient 0.02 - 0.1 (Polished), 0.2 (Oxidized)
Aluminium Specific Heat Capacity (J/kg·K) 897
Aluminium Thermal Conductivity (W/m.K) 235
Aluminium Thermal Conductivity (BTU/h·ft·°F) 135.87
