Properties and Overview of Hafnium

Overview:

Hafnium (Hf) is a transition metal with the chemical symbol Hf and atomic number 72. It was discovered in 1923 by Dirk Coster and George de Hevesy, who identified it while analyzing zirconium minerals. Due to their similar chemical properties, hafnium is often found in close association with zirconium, making their separation challenging. This element is relatively rare in the Earth's crust, with an abundance of about 5.8 parts per million. Physically, hafnium is a lustrous, silvery-gray metal known for its high density and strength. Its density is approximately 13.31g/cm³, making it one of the denser metals. Hafnium's melting point is about 2,233°C and its boiling point is 4,603°C, both relatively high, reflecting its stability under extreme conditions. These characteristics contribute to its use in high-temperature applications.
Chemically, hafnium is notable for its corrosion resistance, particularly against alkalis, acids, and water. It forms a protective oxide layer on its surface, similar to titanium and zirconium, which prevents further oxidation. Hafnium typically exhibits an oxidation state of +4 in its compounds, with hafnium dioxide (HfO₂) being one of the most important. HfO₂ is a high-k dielectric material, meaning it has a high dielectric constant, which makes it valuable in semiconductor technology. Hafnium can also form halides, such as hafnium tetrachloride (HfCl₄), used in various chemical processes.
From a safety perspective, hafnium is generally considered low toxicity. However, due to its pyrophoric nature, finely divided hafnium powder can pose a fire and explosion hazard, meaning it can ignite spontaneously in air. Therefore, it must be handled carefully, particularly in powdered form, to prevent accidental ignition. In industrial settings, appropriate safety measures, such as protective equipment and proper ventilation, are necessary to mitigate these risks. Hafnium compounds, while not highly toxic, should still be handled carefully to avoid inhalation or ingestion, as with many industrial chemicals.

Production:

The production of hafnium primarily involves extracting and purifying zirconium ores, such as zircon (ZrSiO₄). Given their chemical similarity, zirconium and hafnium are often extracted together, and their separation is a complex process. The Kroll process, which is used to extract zirconium, is typically employed, with additional steps to separate the two elements. Hafnium is produced in much smaller quantities than zirconium, reflecting its relative scarcity and specific industrial demand. Significant hafnium producers include the United States, Australia, and South Africa.

Applications:

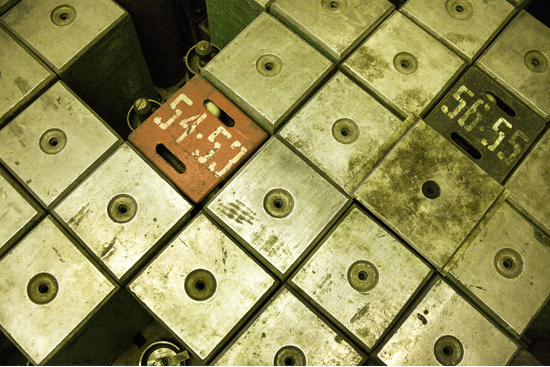

Hafnium's most significant application is in the nuclear industry. Due to its ability to absorb neutrons effectively, hafnium is used in control rods in nuclear reactors, where it plays a crucial role in regulating the fission process. This property is precious because, unlike many other materials, hafnium does not degrade quickly in the high-radiation environment of a reactor. In addition to its use in the nuclear industry, hafnium is employed in the aerospace sector for high-temperature alloys, known as superalloys, used in jet engines and space vehicle components. These alloys exploit hafnium's strength, corrosion resistance, and ability to retain these properties at high temperatures.
In electronics, hafnium is used in semiconductor technology, particularly in producing field-effect transistors (FETs). Hafnium dioxide is used as a gate insulator in these devices, replacing silicon dioxide due to its superior insulating properties. This allows for the continued miniaturization of electronic components while reducing power consumption and leakage.

Summary:

Hafnium is a rare and valuable transition metal with significant applications in the nuclear, aerospace, and electronics industries. Its high melting point, density, and corrosion resistance make it ideal for use in extreme environments, such as nuclear reactors and jet engines. The production of hafnium is closely linked with that of zirconium, requiring complex separation processes due to their chemical similarities. While generally safe to handle, hafnium's pyrophoric nature in powdered form necessitates careful management in industrial applications.

See a comprehensive list of atomic, electrical, mechanical, physical and thermal properties for hafnium below:
