Properties and Overview of Iron

Overview:

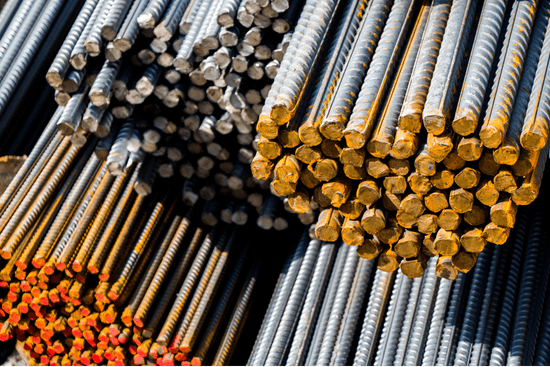

Image of Iron or Application Iron (Fe) represented by the chemical symbol Fe and atomic number 26, is a metal that plays a central role in modern civilization due to its abundance, versatile properties, and extensive applications. It is the fourth most common element in the Earth's crust and is widely distributed in the universe. Iron has been known since antiquity and utilized for thousands of years, particularly during the Iron Age, which marked a significant advancement in human technology and society. Physically, iron is a lustrous, silver-gray metal that is malleable and ductile in its pure form. It has a density of about 7.87g/cm3, a melting point of 1,538°C, and a boiling point of approximately 2,862°C. Iron exists in several allotropes with distinct crystal structures and properties, including alpha-iron (ferrite), gamma-iron (austenite), and delta-iron. The metal's ability to transition between these forms under different temperatures and conditions contributes to its versatility, particularly in forming steel and other alloys.
Chemically, iron is a highly reactive element that readily forms compounds with other elements. It most commonly exists in oxidation states of +2 and +3, known as ferrous (Fe2+) and ferric (Fe3+). Iron compounds are abundant and diverse, ranging from oxides, such as hematite (Fe2O3) and magnetite (Fe3O4), to sulfides, carbonates, and chlorides. Iron's reactivity with oxygen leads to the formation of rust, a process known as oxidation, which occurs when iron is exposed to moisture and air. This tendency to oxidize is a significant consideration in its storage and use, as it can lead to the degradation of iron-based materials over time.
Safety considerations regarding iron are primarily concerned with its oxidation products and dust. While elemental iron is not harmful, iron dust can be a respiratory irritant if inhaled in large quantities. Iron compounds, such as iron chloride and iron sulfate, can be corrosive and should be handled carefully to avoid skin and eye contact. Ingesting large amounts of iron, particularly in supplement form, can be toxic and lead to iron poisoning, which is a severe medical condition requiring immediate treatment. However, iron is generally considered safe when handled properly, and its widespread use in various forms underscores its safety under normal circumstances.


Production:

The production of iron is a large-scale industrial process primarily carried out in blast furnaces. The principal raw material for iron production is iron ore, which is mined in several forms, including hematite, magnetite, and goethite. These ores are rich in iron oxides, which are reduced to metallic iron through a series of chemical reactions involving carbon (in the form of coke) at high temperatures. In a blast furnace, iron ore, coke, and limestone are loaded, and hot air is blown into the furnace to facilitate the reduction of iron oxides to molten iron. This molten iron, or pig iron, can be further processed to produce steel by removing impurities and adding alloying elements.


Applications:

Iron is essential to life, particularly for its role in biological processes. In humans and other animals, iron is a critical component of hemoglobin, the protein in red blood cells that carries oxygen from the lungs to the rest of the body. Iron is also found in myoglobin, which stores oxygen in muscle cells, and in various enzymes that facilitate biochemical reactions.
Iron and its alloys, particularly steel, are fundamental to construction, manufacturing, and numerous other industries. Steel, an alloy of iron and carbon (and often other elements such as manganese, chromium, and nickel), is known for its strength, durability, and versatility. It is used in constructing buildings, bridges, railways, and ships, as well as in manufacturing vehicles, machinery, tools, and appliances. The varying carbon content and the addition of other alloying elements allow for producing a wide range of steel types with different properties, such as stainless steel, which is resistant to corrosion, and high-strength, low-alloy steel used in structural applications.
Iron is also used to produce cast iron, which contains a higher carbon content than steel and is known for its excellent castability, machinability, and wear resistance. Cast iron is used to manufacture pipes, automotive components, and cookware, among other products.
In addition to its industrial applications, iron plays a crucial role in agriculture and environmental management. Iron compounds, such as iron sulfate, are used as soil conditioners and fertilizers to correct plant iron deficiencies, which can lead to chlorosis. In this condition, leaves turn yellow due to a lack of chlorophyll. Iron is also used in water treatment processes to remove contaminants such as arsenic and produce magnetic materials for electronics and data storage.


Summary:

Iron is a fundamental element with significant physical and chemical properties that make it indispensable in a wide range of applications. Its role in producing steel and other alloys has made it a cornerstone of modern industry, while its biological importance underscores its value to life on Earth. Although it requires careful handling to avoid oxidation and toxicity, iron remains one of human history's most essential and widely used metals.



See a comprehensive list of atomic, electrical, mechanical, physical and thermal properties for iron below:



Atomic Structure of Iron

Image of Iron Structure

Unfamiliar with a property? Click it's description to be given a full definition in the GLOSSARY

See properties and overview for
ALLOYS and POLYMERS
popular in engineering

Require different units not displayed?
CONVERT VARIOUS UNITS HERE

Atomic Properties of Iron

Atomic Property (Units) Value
Iron Atomic Electron Configuration [Ar] 3d64s2
Iron Atomic Mass (amu) 55.845
Iron Atomic Number 26
Iron Chemical Element Symbol Fe
Iron Covalent Radius (Å) 1.32
Iron Crystal Structure Body-Centered Cubic (BCC) (Iron Alpha), Face-Centered Cubic (FCC) (Iron Gamma)
Iron Electronegativity (Pauling Scale) 1.83
Iron Electrons per Orbital Shell (inner most first) 2, 8, 14, 2
Iron Half-Life (Years) N/A - Stable
Iron Lattice Parameter / Lattice Constant (Å) Iron Alpha a = 2.87, Iron Gamma a = 3.65
Iron Number of Electron Orbital Shells 4
Iron Number of Electrons 26
Iron Number of Neutrons 26
Iron Number of Protons 26
Iron Periodic Table Series Transition Metals
Iron Phase at 'Standard Temperature and Pressure' Solid
Iron Stable Isotopes Fe-56, Fe-57, Fe-58

Unfamiliar with a property? Click it's description to be given a full definition in the GLOSSARY

See properties and overview for
ALLOYS and POLYMERS
popular in engineering

Require different units not displayed?
CONVERT VARIOUS UNITS HERE

Electrical Properties of Iron

Electrical Property (Units) Value
Iron Dielectric Constant at 'Standard Temperature and Pressure' Unknown
Iron Electrical Breakdown Voltage at Atmospheric Pressure (kV/mm) Unknown
Iron Electrical Conductivity (S/m) 1E+07
Iron Electrical Resistivity at Room Temperature (25°C) (Ω·m) 1E-07
Iron Magnetic Property Ferromagnetic
Iron Superconducting Transition Temperature (K) N/A - Not a Super Conductor
Iron Temperature Coefficient of Resistance (°C⁻¹) +0.00651 (6510 ppm/°C)

Unfamiliar with a property? Click it's description to be given a full definition in the GLOSSARY

See properties and overview for
ALLOYS and POLYMERS
popular in engineering

Require different units not displayed?
CONVERT VARIOUS UNITS HERE

Mechanical Properties of Iron

Mechanical Property (Units) Value
Iron Compressive Strength (MPa) 250 - 500
Iron Ductile to Brittle Transition Temperature (°C) - 20 to 0
Iron Fatigue Limit (MPa) 90 - 250
Iron Fracture Toughness (MPa·√m) 50
Iron Hardness Brinell 80 - 100
Iron Hardness Rockwell 50 (HRB)
Iron Hardness Vickers 70 - 120
Iron Heat Deflection Temperature (°C) N/A - Not a Polymer
Iron Modulus of Elasticity / Young's Modulus (GPa) 200 - 211
Iron Percent Elongation (%) 40
Iron Poissons Ratio 0.29
Iron Shear Modulus (GPa) 82
Iron Shear Strength (MPa) 170 - 210
Iron Ultimate Tensile Strength (MPa) 250
Iron Yield Strength (MPa) 50 - 250

Unfamiliar with a property? Click it's description to be given a full definition in the GLOSSARY

See properties and overview for
ALLOYS and POLYMERS
popular in engineering

Require different units not displayed?
CONVERT VARIOUS UNITS HERE

Physical Properties of Iron

Physical Property (Units) Value
Iron Boiling Point at Atmospheric Pressure (°C) 2862
Iron Chemical Composition (Element %) Fe
Iron Cost ($/kg) 0.1
Iron Density at 'Standard Temperature and Pressure' (kg/m3) 7874
Iron Glass Transition Temperature at Atmospheric Pressure (°C) N/A
Iron Melting Point at Atmospheric Pressure (°C) 1538
Iron Polymer Family N/A - Not a Polymer
Iron Refractive Index Unknown
Iron Specific Gravity 7.874
Iron Viscosity at Melting Point (mPa·s) 6.08

Unfamiliar with a property? Click it's description to be given a full definition in the GLOSSARY

See properties and overview for
ALLOYS and POLYMERS
popular in engineering

Require different units not displayed?
CONVERT VARIOUS UNITS HERE

Thermal Properties of Iron

Thermal Property (Units) Value
Iron Coefficient of Thermal Expansion (µm/m·K) 11.8
Iron Emissivity Coefficient 0.07 (Polished), 0.6 - 0.8 (Oxidized)
Iron Specific Heat Capacity (J/kg·K) 449
Iron Thermal Conductivity (W/m.K) 80.4
Iron Thermal Conductivity (BTU/h·ft·°F) 46.49
