Element Symbol

Properties and Overview of Manganese

Overview:

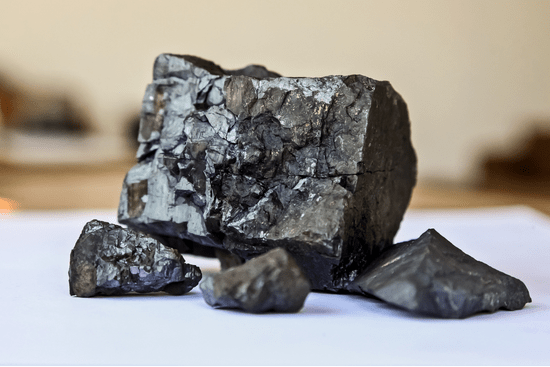

Image of Manganese or Application Manganese (Mn) is a chemical element with the symbol Mn and atomic number 25. It is a transition metal known for its importance in industrial and biological processes. Discovered by Carl Wilhelm Scheele in 1774 and later isolated by Johan Gottlieb Gahn, manganese is one of the more abundant elements in the Earth's crust, typically found in combination with iron and other minerals. Physically, manganese is a hard, brittle metal with a gray-white appearance. It is less malleable than iron but shares a similar density, weighing about 7.21g/cm3. Manganese has a melting point of 1,246°C and a boiling point of 2,061°C. The metal exhibits several allotropes, meaning it can exist in different structural forms depending on temperature, which can slightly alter its physical properties. Manganese is also known for its magnetic properties, although it is only weakly magnetic at room temperature.
Chemically, manganese is reactive, particularly when exposed to air or water. When exposed to oxygen, it readily oxidizes to form manganese oxide (MnO), a black or brown compound that further oxidizes to manganese dioxide (MnO2). Manganese exists in several oxidation states, with +2 and +7 being particularly significant in industrial and biological contexts. Manganese dioxide, for example, is an essential oxidizing agent used in dry-cell batteries. The element can also form various compounds, including manganese sulfate (MnSO4) and potassium permanganate (KMnO4), a strong oxidizer and disinfectant.
Safety considerations regarding manganese primarily involve its toxicity in certain forms and concentrations. While manganese is an essential nutrient for humans, required for bone formation, blood clotting, and other physiological functions, excessive exposure can be harmful. Occupational exposure to manganese dust or fumes, particularly in mining, welding, and steelmaking, can lead to a condition known as manganism, a neurodegenerative disorder with symptoms similar to Parkinson's disease. Inhalation of manganese dust can also cause respiratory problems. Safety measures in industrial settings include proper ventilation, protective equipment, and air quality monitoring to prevent overexposure. While useful, manganese compounds like potassium permanganate must be handled carefully due to their strong oxidizing properties, which can cause skin and eye irritation upon contact.


Production:

Manganese production involves several methods, depending on the desired form of the metal. The most common source of manganese is the mineral pyrolusite, which consists primarily of manganese dioxide. Manganese is typically extracted through carbothermic reduction, where manganese ores are heated in the presence of carbon to produce manganese metal and carbon dioxide. Another method involves the electrolytic reduction of manganese sulfate, producing high-purity manganese metal. Significant producers of manganese include countries like South Africa, Australia, China, and Gabon, with South Africa holding the most significant known reserves.


Applications:

Manganese has a wide range of applications, particularly in the steel industry, where it is used as an alloying element to improve steel's hardness, toughness, and wear resistance. Manganese is essential in producing high-strength steel alloys, including stainless steel, which helps remove oxygen and sulfur impurities from the molten metal. Manganese dioxide is widely used in the production of batteries, especially in alkaline and zinc-carbon batteries, where it acts as a depolarizer. In agriculture, manganese is a vital micronutrient used in fertilizers to promote plant growth, as it is essential for photosynthesis and other biochemical processes in plants. Potassium permanganate is used as a disinfectant and in water treatment to remove iron and hydrogen sulfide from water.


Summary:

Manganese is a versatile transition metal with significant roles in industry and biology. It is characterized by its hardness, brittleness, and multiple oxidation states, which allow it to form a wide range of compounds with various applications. Manganese is primarily produced by reducing manganese ores and is essential in steelmaking, battery production, agriculture, and water treatment. While it is vital for human health in trace amounts, excessive exposure to manganese, particularly in industrial settings, requires careful management to prevent health risks.



See a comprehensive list of atomic, electrical, mechanical, physical and thermal properties for manganese below:



Atomic Structure of Manganese

Image of Manganese Structure

Unfamiliar with a property? Click it's description to be given a full definition in the GLOSSARY

See properties and overview for
ALLOYS and POLYMERS
popular in engineering

Require different units not displayed?
CONVERT VARIOUS UNITS HERE

Atomic Properties of Manganese

Atomic Property (Units) Value
Manganese Atomic Electron Configuration [Ar] 3d54s2
Manganese Atomic Mass (amu) 54.938
Manganese Atomic Number 25
Manganese Chemical Element Symbol Mn
Manganese Covalent Radius (Å) 1.39
Manganese Crystal Structure Body-Centered Cubic (BCC)
Manganese Electronegativity (Pauling Scale) 1.55
Manganese Electrons per Orbital Shell (inner most first) 2, 8, 13, 2
Manganese Half-Life (Years) N/A - Stable
Manganese Lattice Parameter / Lattice Constant (Å) a = 8.89
Manganese Number of Electron Orbital Shells 4
Manganese Number of Electrons 25
Manganese Number of Neutrons 25
Manganese Number of Protons 25
Manganese Periodic Table Series Transition Metals
Manganese Phase at 'Standard Temperature and Pressure' Solid
Manganese Stable Isotopes Mn-55

Unfamiliar with a property? Click it's description to be given a full definition in the GLOSSARY

See properties and overview for
ALLOYS and POLYMERS
popular in engineering

Require different units not displayed?
CONVERT VARIOUS UNITS HERE

Electrical Properties of Manganese

Electrical Property (Units) Value
Manganese Dielectric Constant at 'Standard Temperature and Pressure' Unknown
Manganese Electrical Breakdown Voltage at Atmospheric Pressure (kV/mm) Unknown
Manganese Electrical Conductivity (S/m) 6.94E+06
Manganese Electrical Resistivity at Room Temperature (25°C) (Ω·m) 1.441E-07
Manganese Magnetic Property Paramagnetic
Manganese Superconducting Transition Temperature (K) N/A - Not a Super Conductor
Manganese Temperature Coefficient of Resistance (°C⁻¹) +0.0035 (3500 ppm/°C)

Unfamiliar with a property? Click it's description to be given a full definition in the GLOSSARY

See properties and overview for
ALLOYS and POLYMERS
popular in engineering

Require different units not displayed?
CONVERT VARIOUS UNITS HERE

Mechanical Properties of Manganese

Mechanical Property (Units) Value
Manganese Compressive Strength (MPa) 600 - 900
Manganese Ductile to Brittle Transition Temperature (°C) -100
Manganese Fatigue Limit (MPa) 60
Manganese Fracture Toughness (MPa·√m) 20 - 30
Manganese Hardness Brinell 160
Manganese Hardness Rockwell 25 (HRC)
Manganese Hardness Vickers 196
Manganese Heat Deflection Temperature (°C) N/A - Not a Polymer
Manganese Modulus of Elasticity / Young's Modulus (GPa) 198
Manganese Percent Elongation (%) 30 - 40
Manganese Poissons Ratio 0.26
Manganese Shear Modulus (GPa) 85
Manganese Shear Strength (MPa) 165
Manganese Ultimate Tensile Strength (MPa) 500 - 600
Manganese Yield Strength (MPa) 196

Unfamiliar with a property? Click it's description to be given a full definition in the GLOSSARY

See properties and overview for
ALLOYS and POLYMERS
popular in engineering

Require different units not displayed?
CONVERT VARIOUS UNITS HERE

Physical Properties of Manganese

Physical Property (Units) Value
Manganese Boiling Point at Atmospheric Pressure (°C) 2061
Manganese Chemical Composition (Element %) Mn
Manganese Cost ($/kg) 2
Manganese Density at 'Standard Temperature and Pressure' (kg/m3) 7440
Manganese Glass Transition Temperature at Atmospheric Pressure (°C) N/A
Manganese Melting Point at Atmospheric Pressure (°C) 1246
Manganese Polymer Family N/A - Not a Polymer
Manganese Refractive Index Unknown
Manganese Specific Gravity 7.44
Manganese Viscosity at Melting Point (mPa·s) Unknown

Unfamiliar with a property? Click it's description to be given a full definition in the GLOSSARY

See properties and overview for
ALLOYS and POLYMERS
popular in engineering

Require different units not displayed?
CONVERT VARIOUS UNITS HERE

Thermal Properties of Manganese

Thermal Property (Units) Value
Manganese Coefficient of Thermal Expansion (µm/m·K) 21.7
Manganese Emissivity Coefficient Unknown
Manganese Specific Heat Capacity (J/kg·K) 479
Manganese Thermal Conductivity (W/m.K) 7.81
Manganese Thermal Conductivity (BTU/h·ft·°F) 4.52
