Element Symbol

Properties and Overview of Platinum

Overview:

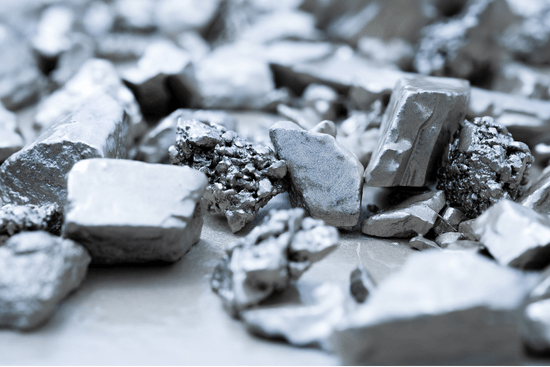

Image of Platinum or Application Platinum (Pt) is a dense, malleable, and precious metal with the symbol Pt and atomic number 78. It belongs to the group of transition metals in the periodic table. It is renowned for its remarkable physical and chemical properties, including high corrosion resistance, excellent catalytic capabilities, and a silvery-white appearance. Historically, platinum has been recognized for its rarity and has often been associated with wealth and prestige, but it also plays a crucial role in various industrial and technological applications due to its unique characteristics. Physically, platinum is a heavy metal with a density of 21.45g/cm3, making it one of the densest elements known. It has a melting point of 1,768°C and a boiling point of 3,825°C, indicating its ability to withstand extremely high temperatures without degrading. Platinum's malleability and ductility are comparable to gold, allowing it to be easily shaped and drawn into wires or thin sheets. It has a face-centered cubic (FCC) crystal structure, contributing to its mechanical properties and high resistance to deformation. Platinum's appearance is typically bright and lustrous, with a silver-white color that does not tarnish, making it highly desirable for jewelry and decorative items.
Chemically, platinum is one of the least reactive metals, exhibiting exceptional oxidation resistance, even at high temperatures. It does not corrode in air and is unaffected by most acids, which enhances its durability in various environments. Platinum is resistant to hydrochloric acid, but it can be dissolved in aqua regia, a mixture of nitric acid and hydrochloric acid, one of the few substances capable of dissolving it. The metal's inertness makes it an excellent choice for applications requiring stability and chemical reaction resistance. Platinum readily forms complexes and can exist in several oxidation states, most commonly +2 and +4. These properties make platinum an essential catalyst in various chemical reactions, including hydrogenation, oxidation, and reforming processes. Platinum compounds, such as cisplatin, are also significant in medical applications, particularly in cancer treatment, due to their ability to interfere with DNA replication in cancer cells.
Safety considerations when handling platinum generally focus on its compounds rather than the metal itself, as metallic platinum is considered non-toxic and hypoallergenic, making it safe for use in medical implants and jewelry. However, some platinum compounds, especially those used in chemotherapy, are highly toxic and can cause side effects such as kidney damage, hearing loss, and nausea. Additionally, the dust and fumes generated during the processing of platinum can be harmful if inhaled, potentially causing respiratory issues. Thus, adequate protective measures, including proper ventilation and personal protective equipment, are essential in environments where platinum compounds are handled. Despite its relative safety, careful handling is necessary when working with platinum compounds due to their potent biological activity and potential environmental impact.


Applications:

Platinum's applications are diverse and extend across multiple industries due to its unique properties. In the automotive industry, platinum is a critical component in catalytic converters, where it serves as a catalyst to reduce harmful emissions by converting carbon monoxide, hydrocarbons, and nitrogen oxides into less harmful substances like carbon dioxide, water vapor, and nitrogen. This application alone accounts for a significant portion of platinum demand globally. In the chemical industry, platinum catalysts are used in the production of silicones, nitric acid, and various petrochemicals. Platinum is also used in the refining of petroleum, which helps crack hydrocarbons to produce gasoline and other fuels.


Summary:

Platinum is likely to remain a crucial material in emerging technologies, such as renewable energy systems and advanced electronics. The development of fuel cell technologies, which utilize platinum as a catalyst, is expected to increase demand for the metal in the coming decades. Overall, platinum's rarity, versatility, and durability ensure its continued importance across industries, making it one of the most valuable and sought-after metals in the world.



See a comprehensive list of atomic, electrical, mechanical, physical and thermal properties for platinum below:



Atomic Structure of Platinum

Image of Platinum Structure

Unfamiliar with a property? Click it's description to be given a full definition in the GLOSSARY

See properties and overview for
ALLOYS and POLYMERS
popular in engineering

Require different units not displayed?
CONVERT VARIOUS UNITS HERE

Atomic Properties of Platinum

Atomic Property (Units) Value
Platinum Atomic Electron Configuration [Xe] 4f145d96s1
Platinum Atomic Mass (amu) 195.08
Platinum Atomic Number 78
Platinum Chemical Element Symbol Pt
Platinum Covalent Radius (Å) 1.36
Platinum Crystal Structure Face-Centered Cubic (FCC)
Platinum Electronegativity (Pauling Scale) 2.28
Platinum Electrons per Orbital Shell (inner most first) 2, 8, 18, 32, 17, 1
Platinum Half-Life (Years) N/A - Stable
Platinum Lattice Parameter / Lattice Constant (Å) a = 3.92
Platinum Number of Electron Orbital Shells 6
Platinum Number of Electrons 78
Platinum Number of Neutrons 78
Platinum Number of Protons 78
Platinum Periodic Table Series Transition Metals
Platinum Phase at 'Standard Temperature and Pressure' Solid
Platinum Stable Isotopes Pt-195

Unfamiliar with a property? Click it's description to be given a full definition in the GLOSSARY

See properties and overview for
ALLOYS and POLYMERS
popular in engineering

Require different units not displayed?
CONVERT VARIOUS UNITS HERE

Electrical Properties of Platinum

Electrical Property (Units) Value
Platinum Dielectric Constant at 'Standard Temperature and Pressure' Unknown
Platinum Electrical Breakdown Voltage at Atmospheric Pressure (kV/mm) Unknown
Platinum Electrical Conductivity (S/m) 9.4E+06
Platinum Electrical Resistivity at Room Temperature (25°C) (Ω·m) 1.064E-07
Platinum Magnetic Property Paramagnetic
Platinum Superconducting Transition Temperature (K) N/A - Not a Super Conductor
Platinum Temperature Coefficient of Resistance (°C⁻¹) +0.00392 (3920 ppm/°C)

Unfamiliar with a property? Click it's description to be given a full definition in the GLOSSARY

See properties and overview for
ALLOYS and POLYMERS
popular in engineering

Require different units not displayed?
CONVERT VARIOUS UNITS HERE

Mechanical Properties of Platinum

Mechanical Property (Units) Value
Platinum Compressive Strength (MPa) 500 - 550
Platinum Ductile to Brittle Transition Temperature (°C) None (Ductile Always)
Platinum Fatigue Limit (MPa) 900
Platinum Fracture Toughness (MPa·√m) 20
Platinum Hardness Brinell 40 - 50
Platinum Hardness Rockwell 20 - 40 (HRB)
Platinum Hardness Vickers 40 - 50
Platinum Heat Deflection Temperature (°C) N/A - Not a Polymer
Platinum Modulus of Elasticity / Young's Modulus (GPa) 168 - 170
Platinum Percent Elongation (%) 25 - 30
Platinum Poissons Ratio 0.39
Platinum Shear Modulus (GPa) 61
Platinum Shear Strength (MPa) 80 - 100
Platinum Ultimate Tensile Strength (MPa) 125
Platinum Yield Strength (MPa) 70

Unfamiliar with a property? Click it's description to be given a full definition in the GLOSSARY

See properties and overview for
ALLOYS and POLYMERS
popular in engineering

Require different units not displayed?
CONVERT VARIOUS UNITS HERE

Physical Properties of Platinum

Physical Property (Units) Value
Platinum Boiling Point at Atmospheric Pressure (°C) 3825
Platinum Chemical Composition (Element %) Pt
Platinum Cost ($/kg) 40000
Platinum Density at 'Standard Temperature and Pressure' (kg/m3) 21450
Platinum Glass Transition Temperature at Atmospheric Pressure (°C) N/A
Platinum Melting Point at Atmospheric Pressure (°C) 1768
Platinum Polymer Family N/A - Not a Polymer
Platinum Refractive Index Unknown
Platinum Specific Gravity 21.45
Platinum Viscosity at Melting Point (mPa·s) 5.8

Unfamiliar with a property? Click it's description to be given a full definition in the GLOSSARY

See properties and overview for
ALLOYS and POLYMERS
popular in engineering

Require different units not displayed?
CONVERT VARIOUS UNITS HERE

Thermal Properties of Platinum

Thermal Property (Units) Value
Platinum Coefficient of Thermal Expansion (µm/m·K) 8.8
Platinum Emissivity Coefficient 0.02 - 0.04
Platinum Specific Heat Capacity (J/kg·K) 133
Platinum Thermal Conductivity (W/m.K) 71.6
Platinum Thermal Conductivity (BTU/h·ft·°F) 41.40
